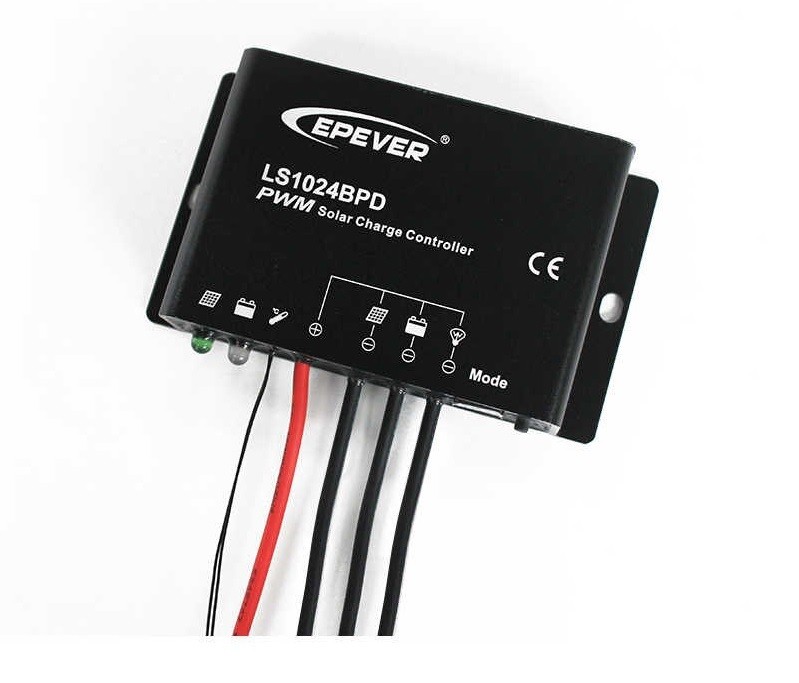

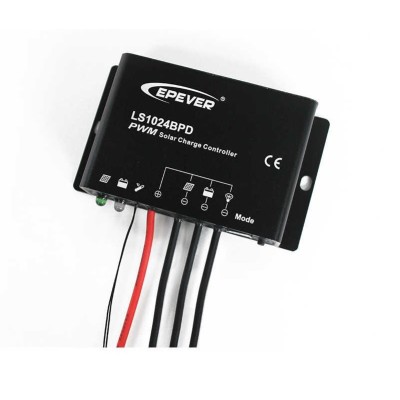

Solar Charge Controller, 12/24V

SKU 90287 Category Solar Panels
€58.67
Available. Delivery in 3-5 working days

General Characteristics

- Automatic lighting control function

- Ideal for areas with increased humidity, such as boats, outdoor pathway lighting, parking areas etc.

- Suitable for 12/24V lamps

- Selection of the battery type (AGM, Flood & Gel)

- Waterproof (IP67)

- 100% protection against humidity

Technical Specifications

-Type of charging: 4 stages PWM charging (Bulk – PWM – Boost – Float)

- Rated solar input: 10A

- Rated load: 10A

- Regulation voltage: 14.4V

- Load disconnect: 11.08V

- Load reconnect: 12.58V

- Self-consumption: Max. 6mA

- Temperature: -35 to +55

- Terminals: For 2.5mm cables

- Protection against short circuit, over current, overload, reverse polarity, battery reverse current at night, high load voltage

- LED indications for charging, battery levels, low voltage, disconnect, etc.

- Weight: 250gr

- Dimensions: 140x70mm
