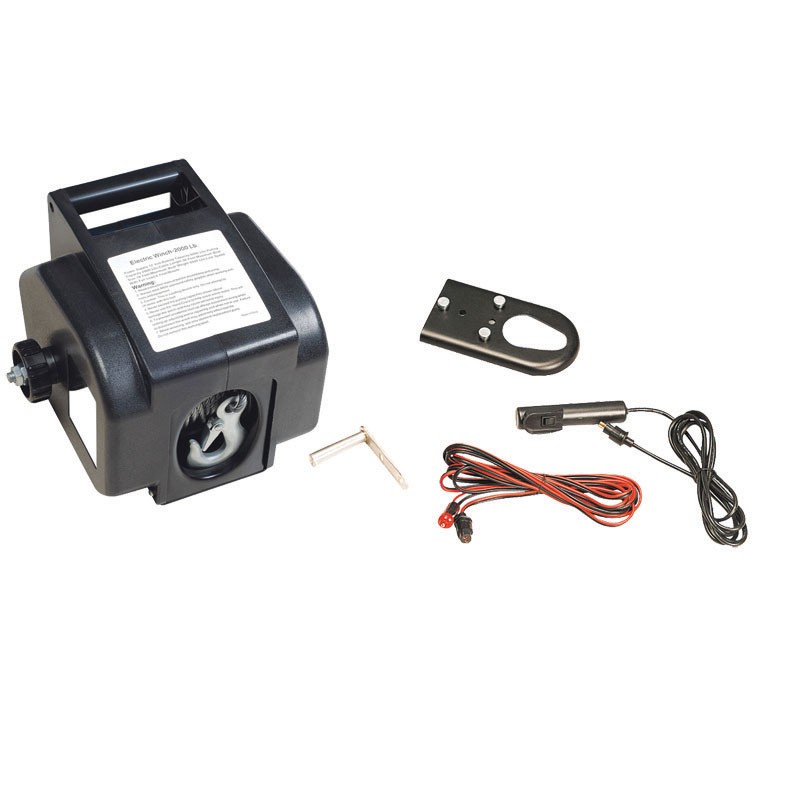

The AnchorWinch electric trailer winch of 2000lbs capacity features a unique mounting plate which allows you to temporarily or permanently mount it on any flat surface. It also features a built-in carry handle. It is supplied with a 15’ (4.5m) power cable, a mounting plate & a hand crank.

Technical Characteristics

Magnet Motor: 12V DC, Max 40A, 0,4hp(0,30kw)

Pulling Capacity: 2000lbs / 1000kg

Line Speed: 6’ (1,8m/min) with load

Wire Rope (Diam. x L): 0,2” x 30’ (5,1mm x 9m)

Power Cord: 15’ (4,5m) / 9,9’(3m)

Trailer Winch Safety Tips

- Trailer winches are not tie downs. To prevent mishaps, use dedicated bow and stern tie downs to secure your boat on the trailer

- Make sure you have secure footing and proper leverage when using manual winches. Slips and falls by winch operators and injuries from winch handles that kick back are common boat ramp accidents.

- To avoid chafe on the winch line, be sure it doesn’t rub against any sharp edges on the winch stand or trailer. If frayed or worn spots appear, replace the winch line immediately with a new rope, strap, or cable of the proper type, size, and strength. Cable life can be extended by frequently lubricating it with wire rope lubricant so the strands of cable slide by each other with less friction.

Lubricating your winch cable will also reduce the number of snags and frays in the cable.
